Ball Straight Outlet Water Meter valve
Forged brass body with aluminum security handle
Machined chrome plated brass ball
Nature brass color surface treatment
Nominal pressure:290 psi(20 bar)
Working temperature: -10℃≤t≤120℃
Ball outlet water meter Valve, Tamper-Proof actuator

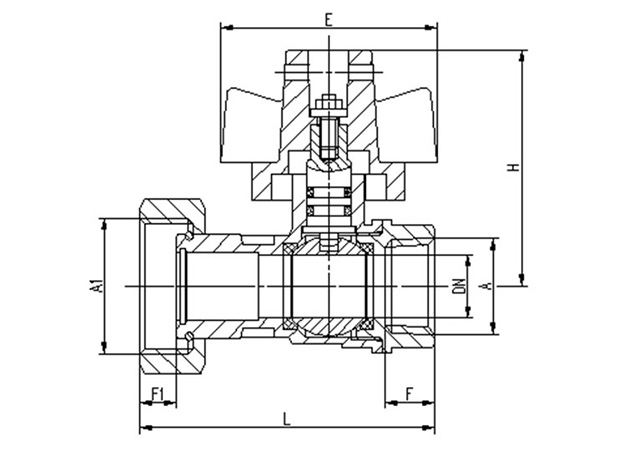

| Size | Dn | Length | Height | Qty/Ctn | |
| 1/2"XG3/4" | 15 | 65 | 53 | 120 | |
| 1/2"XG7/8" | 15 | 65 | 53 | 120 | |
| 1"XG1-1/4" | 25 | 86 | 73 | 48 | |
| 1-1/2"XG2" | 40 | 110 | 85 | 20 | |
Yes, Tosval is a professional factory in the manufacturing field of brass valves more than 30 years, we can design and produce brass valves with your own brand.
