Forged brass body with aluminium lever handle
Machined chrome plated brass ball
Nickel plated surface treatment
Nominal pressure:30 bar
Working temperature: -10℃≤t≤120℃
suitable for: water, Oil, Gas
Female/female threaded ends according to ISO 228

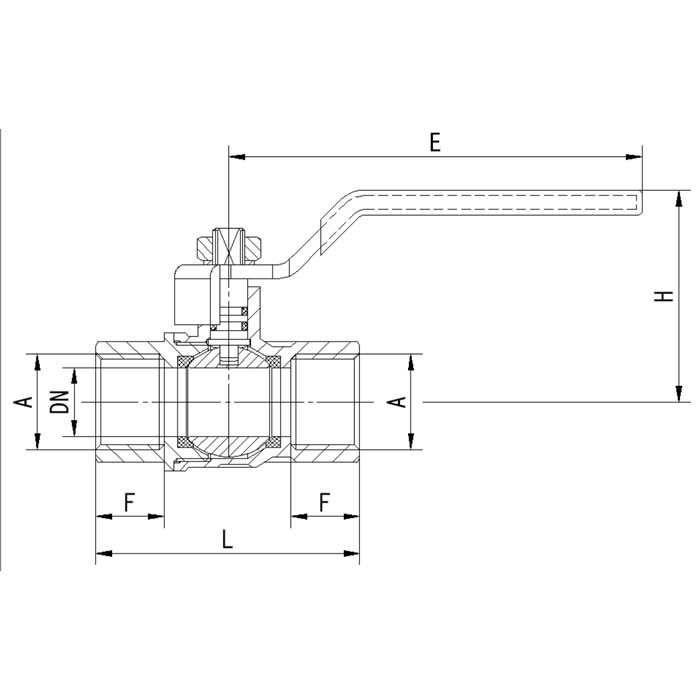

| Size | Dn | Length | Height | Qty/Ctn | |
| 1/4" | 10 | 47 | 43 | 192 | |
| 3/8" | 10 | 47 | 43 | 192 | |
| 1/2" | 15 | 58 | 46 | 120 | |
| 3/4" | 20 | 64 | 55 | 96 | |
| 1" | 25 | 70 | 65 | 60 | |
| 1-1/4" | 32 | 86 | 75 | 40 | |
| 1-1/2" | 40 | 94 | 81 | 24 | |
| 2" | 50 | 109 | 91 | 16 | |
| 2-1/2" | 64 | 132 | 125 | 8 | |
| 3" | 73 | 146 | 132 | 6 | |
| 4" | 93 | 170 | 14570 | 4 | |
Yes, Tosval is a professional factory in the manufacturing field of brass valves more than 30 years, we can design and produce brass valves with your own brand.
